CM HOIST LODESTAR 1/2 TON 25FT
115VAC C/W RIGID HOOK SUSPENSION

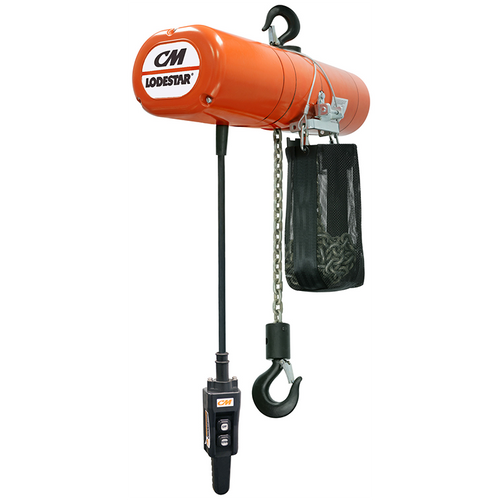

1/2 ton x 25 Feet CM Lodestar Classic Electric Hoist
115V Single Phase
The CM Lodestar Electric Chain Hoist is recognized as the standard in overhead lifting. Generations of users have relied on the power and dependability of the CM Lodestar® for their material handling applications
With the following configuration
Model: CM Lodestar Model J
Capacity: 1/2T
Lift: 25 ft
Suspension: Rigid Top Hook
Hoist Lift Buttons: Single Step Buttons
Operating Voltage: 115V / 1 ph / 60 Hz
Hoist Control Type: Single Speed
Maximum Lifting Speed: 32 ft/min (9.8 m/min)
Pendant Enclosure Rating: NEMA-4X
Pendant Strain Relief: Internal
Hoist Suspension Type: Hook Mounted
Control Voltage: 115 VAC
Lower Hook Type: Latch Type
Pendant Drop (ft): 21.0
Control Enclosure Rating: NEMA-3R
Hoist Duty Classification: HMI Class H4
Chain Container: Fabric 5" Diameter
Chain Container Part Num: 3816PNH
Classic Brochure Click Here
Classic Manual 2020 Click Here
Made in USA
